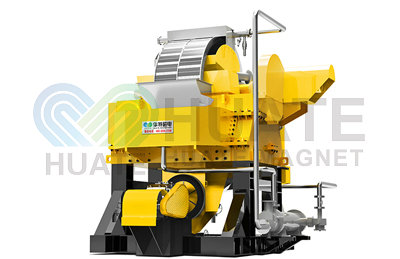

Global Fourth -generation Vertical High Gradient Magnetic Separator (Oil-water compound Cooling circulation)
Type: WHIMSService hotline:400-658-3198
send e-mail: raul@chinahuate.com
- Applicable Scope
it can be used in wet processing for below 1.2mm(-200mesh of 30%~100% ) of fine grained red mine(Hematite, limonite, manganese ore, ilmenite , and other kinds of weakly magnetic minerals, and metallic minerals, such as, quartz, feldspar, nepheline ore, kaolin for removing impurity iron and purification.
- Technical Features
◆The coil use wholly sealed oil cooling outer circulation device,the devicemakes the washing water go through the oil-water heat exchanger ,take away theheat generated by coils.it can used in harsh environment. to ensure the coilstemperature not more than 25℃.
◆The coil ends wrapped by electricalpure iron as iron armor,makes magnetic field uniformity increase more than50%,magnetic field intensity increase more than 8%.background field canreach1.4T
◆Cooling systemadopting wholly sealed external circulation structure,rain-proof,dust-proof andcorrosion proof,it can used in harsh environment.
