Series RCDB Dry Electric-Magnetic Iron Separators
Type: Electromagnetic Iron Separation EquipmentService hotline:400-658-3198
send e-mail: raul@chinahuate.com
- Applicable Scope
- Technical Features
The inner with wholly sealed structure uses the special resin to cast. Featuring with revealed deep magnetic depth, strong magnetic force, dust and rain-protection, wearing eerosion and so on, it can run in the harsh environment. The main technical criteria is beyond or meets the JB/T7689-95 Standard.
Majortechnical parameters:

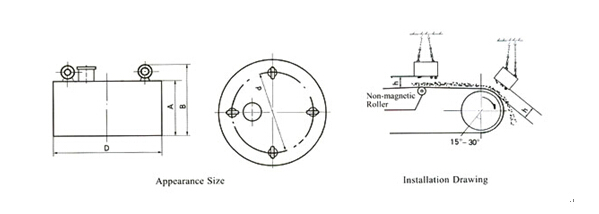

Model | Belt width | Suspension height | Magnetic field intensity | Material depth | Driving power | Belt speed | Weigh | Appearance size mm | ||
A | B | D | ||||||||
RCDB-3 | 300 | 75 | 50 | 50 | 0.4 | 4.5 | 185 | 210 | 250 | 400 |
RCDB-4 | 400 | 100 | 50 | 70 | 0.6 | 300 | 240 | 280 | 500 | |
RCDB-5 | 500 | 150 | 60 | 90 | 1 | 430 | 280 | 325 | 610 | |
RCDB-6.5 | 650 | 200 | 70 | 150 | 2 | 680 | 280 | 325 | 816 | |
RCDB-8 | 800 | 250 | 70 | 200 | 3.6 | 950 | 310 | 355 | 960 | |
RCDB-10 | 1000 | 300 | 70 | 250 | 5 | 1520 | 310 | 360 | 1200 | |
RCDB- 12 | 1200 | 350 | 70 | 300 | 6.8 | 2250 | 310 | 365 | 1400 | |
RCDB-14 | 1400 | 400 | 70 | 350 | 9 | 2950 | 405 | 485 | 1650 | |
RCDB-16 | 1600 | 450 | 70 | 400 | 13 | 4800 | 460 | 540 | 1900 | |
RCDB-18 | 1800 | 500 | 70 | 450 | 18 | 6900 | 530 | 610 | 2150 |
