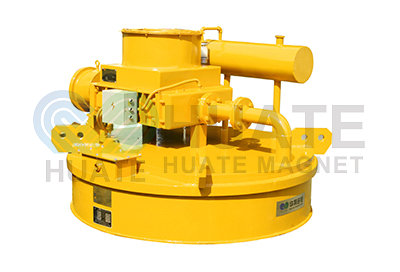

RCDEJ Oil Forced Circulation Electromagnetic Separator

RCDEJ Oil Forced Circulation Electromagnetic Separator

Type: Iron Separator
Patent number:
Service hotline:400-658-3198
send e-mail:    raul@chinahuate.com
  • Applicable Scope
It can be used for the port of coal transport, large-scale thermal power plants, mine and building materials. It can also work in the harsh environment such as dust, humidity, salt fog.
  • Technical Features

It completely solved the heat release, attraction and acclimation problems of general separator.
Technology Characteristics:
• Absorbing the advanced oil forced circulation technology for the large or medium transformer both home and abroad, it features with low temperature (≤50℃) rising and the technology is reliable and safety.
•Magnetic route is short, magnetic waste less, the gradient is high and removing iron efficiently.
•Light weight reasonable oil line, compact cooling structure and high heat-releasing efficiently.
•The exciting coil is completely dipped into the transformer oil to be dustproof, moistureproof and anti-corrosion.
•Made three-dimensional excitation coil winding, the area for heat releasing is large to control the temperature (≤50℃) for long service life.


Majortechnical parameters:


Model

Belt width
 mm

Suspension
 Height
 H mm

Magnetic
 Field
 ≈mT

Exciting
 Power
 ≤kw

Condenser
 Power
 kw

Appearance
 Size
 Mm L*W*H mm

Belt speed

weight

RCDEJ-10

J1

1000

300

90

6.5

0.25

1300*1300*1200

4.5

2600

J2

120

9.5

1300*1300*1250

5

2950

J3

150

15

1350*1350*1280

5.8

3470

RCDEJ-12

J1

1200

350

90

9

1350*1350*1250

4.5

2900

J2

120

14

1350*1350*1280

5

3500

J3

150

20

1600*1600*1380

5.8

5400

RCDEJ-14

J1

1400

400

90

14

1350*1350*1280

4.5

3000

J2

120

20

1600*1600*1420

5

5500

J3

150

29

1830*1830*1450

5.8

7460

RCDEJ-16

J1

1600

450

90

18

1600*1600*1420

4.5

5400

J2

120

28

1830*1830*1450

5

7500

J3

150

32

1950*1950*1480

5.8

8550

RCDEJ-18

J1

1800

500

90

26

0.75

1850*1850*1480

4.5

7600

J2

120

32

1950*1950*1480

5

8600

J3

150

40

2060*2060*1500

5.8

10500

RCDEJ-20

J1

2000

550

90

30

2000*2000*1480

4.5

8800

J2

120

39

2100*2100*1500

5

10600

J3

150

41

2260*2260*1500

5.8

12500

RCDEJ-22

J1

2200

600

90

39

2060*2060*1500

4.5

10500

J2

120

42

2260*2260*1520

5

12800

J3

150

45

2500*2500*1520

5.8

13500

RCDEJ-24

J1

2400

650

90

40

2260*2260*1520

4.5

13000

J2

120

46

2450*2450*1550

5

15200

J3

150

54

2650*2650*1580

5.8

17500
