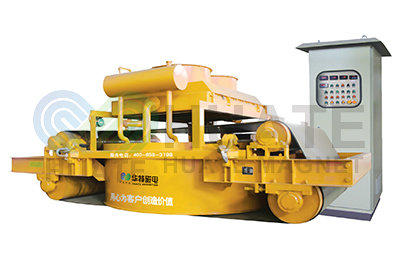

RCDFJ Oil Forced Circulation Self-Cleaning Electromagnetic Separator
Type: Electromagnetic Iron Separation EquipmentService hotline:400-658-3198
send e-mail: raul@chinahuate.com
- Applicable Scope
- Technical Features
Absorbing the advanced oil forced circulation technology for the large or medium transformer both home and abroad, it features with low temperature (≤40℃) rising and the technology is reliable and safety.
•Magnetic route is short, magnetic waste less, the gradient is high and removing iron efficiently.
•Light weight reasonable oil line, compact cooling structure and high heat-releasing efficiently.
•The exciting coil is completely dipped into the transformer oil to be dustproof, moisture-proof and anti-corrosion.
•Made three-dimensional excitation coil winding, the area for heat releasing is large to control the temperature (≤40℃) for long service life.
•Automatically iron-cleaning, easy maintenance, the drum shape structure, special designed wholly sealed structure to help the equipment run in harsh environments.
Major technical parameters:
Model | Belt width | Suspension | Magnetic | Exciting | Power of the fan kw | Appearance size | Belt speed | Weight | Driving | ||
RCDFJ-10 | J1 | 1000 | 300 | 90 | 6.5 | 0.25 | 2960*1620*1480 | 5.8 | 3450 | 3 | |
J2 | 120 | 9.5 | 2960*1620*1520 | 3820 | 3 | ||||||
J3 | 150 | 15 | 3000*1620*1550 | 4500 | 4 | ||||||
RCDFJ-12 | J1 | 1200 | 350 | 90 | 9 | 3250*1770*1520 | 3850 | 4 | |||
J2 | 120 | 14 | 3350*1770*1550 | 4620 | 4 | ||||||
J3 | 150 | 20 | 3520*1770*1590 | 6600 | 5.5 | ||||||
RCDFJ-14 | J1 | 1400 | 400 | 90 | 14 | 3350*1750*1550 | 4650 | 4 | |||
J2 | 120 | 29 | 3520*1860*1590 | 6780 | 5.5 | ||||||
J3 | 150 | 18 | 3630*1860*1620 | 8560 | 5.5 | ||||||
RCDFJ-16 | J1 | 1600 | 450 | 90 | 28 | 3520*1850*1590 | 6750 | 5.5 | |||
J2 | 120 | 32 | 3750*2250*1620 | 8920 | 5.5 | ||||||
J3 | 150 | 26 | 3950*2250*1630 | 10200 | 7.5 | ||||||
RCDFJ-18 | J1 | 1800 | 500 | 90 | 32 | 0.75 | 3950*2250*1630 | 8800 | 7.5 | ||
J2 | 120 | 40 | 3900*2450*1650 | 10500 | 7.5 | ||||||
J3 | 150 | 30 | 4000*2450*1670 | 12500 | 11 | ||||||
RCDFJ-20 | J1 | 2000 | 550 | 90 | 39 | 3950*2450*1650 | 11650 | 7.5 | |||
J2 | 120 | 41 | 4100*2680*1670 | 13500 | 11 | ||||||
J3 | 150 | 39 | 4260*2680*1670 | 15200 | 11 | ||||||
RCDFJ-22 | J1 | 2200 | 600 | 90 | 42 | 4100*2680*1670 | 13200 | 11 | |||
J2 | 120 | 45 | 4260*2750*1690 | 16500 | 11 | ||||||
J3 | 150 | 40 | 4500*2750*1690 | 17200 | 15 | ||||||
RCDFJ-24 | J1 | 2400 | 650 | 90 | 46 | 4260*2750*1690 | 16800 | 15 | |||
J2 | 120 | 54 | 4500*2750*1690 | 18500 | 15 | ||||||
J3 | 150 | 4800*2950*1720 | 22000 | 15 |
