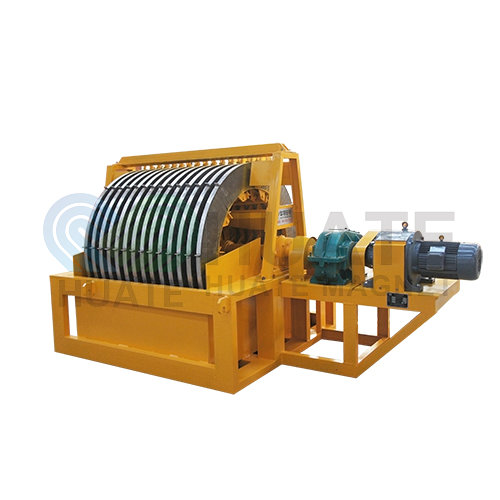

Series YCW Dry Discharge Reclaimers

Series YCW Dry Discharge Reclaimers

Type: Others Mining Equipment
Patent number:ZL200620162175.3
Service hotline:400-658-3198
send e-mail:    raul@chinahuate.com
  • Applicable Scope
The reclaimers are widely used in various fields such as metallurgy, mining, ferrous metals, gold, building materials, power generation, coal and so on to effectively reclaim the magnetic materials.
  • Technical Features

Series YCW dry discharge reclaimers were developed by our company by reviewing advanced technology. The magnetic system is made up of a group of magnetic rings with inlaid magnet. The magnetic system can act directly on the magnetci materials with high field intensity, which can achieve 85%-95% of reclaiming rate. The V type scraper can help discharge the materials without water. The reclaimers are widely used in various fields such as metallurgy, mining, ferrous metals, gold, building materials, power generation, coal and so on to effectively reclaim the magnetic materials.

Major technical parameters:


Model

Processing capacity
 m3/h

Reclaiming capacity
 t/h

Tank width
 mm

Ring Diameter
 mm

Ring number
 A

Motor power
 kw

Weight
 kg

YCW-10-4

200-300

2-4

370

1000


4

3.0


1100

YCW-10-6

400-500

3-5

550

6

1500

YCW-12-8

600-700

5-8

730

1200


8

4.0


1800

YCW-12-10

700-850

7-10

910

10

2100

YCW-15-12

1000-1200

11-16

1090

1500


12

5.5


3200

YCW-15-14

1200-1400

13-18

1270

14

3600

YCW-20-12

1500-1800

14-19

1090

2000


12

5.5


3800

YCW-20-14

2000-2400

17-22

1270

14

4200
