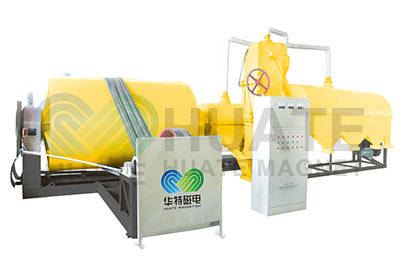

Dry Quartz-Processing Equipment

Dry Quartz-Processing Equipment

Type: Powder Processing Equipment
Patent number:CN201848275U
Service hotline:400-658-3198
send e-mail:    raul@chinahuate.com
  • Applicable Scope
Work PrincipleThis machine is specially designed for quartz-making field for glass industry. It is c
  • Technical Features

Work Principle
This machine is specially designed for quartz-making field for glass industry. It is composed of mill, sieve (for different size product), coarse material-returning system and dust collect system. You can get the different products form different sieve with size 60-120 mesh for glass industry. The size for powder  material coming from dust collector is about 300mesh, which you can use for other business.


Technical Parameter

Model

Diameter
 mm

Length
 mm

Main Power
 kw

General
 Power
 kw

Rotary Speed
 r/m

Feeding Size
 mm

Product
 Size
  mm

Output
 t/h

HZS1725

Ø1700

2500

30

41.55

30

≤300

20~200

1.5~2.0

HZS1930

Ø1900

3000

45

57.75

30

≤300

20~200

2.0~3.0


Cost Estimation of Fine Quartz Processing:

Model

Electricity Consumption

Salary for man

Griddle Consumption

Remark

HZS1725

15.6degree

About RMB12.5

RMB4

Cost of stone balls and stone liner are contained in the product.

HZS1930

14degree

About RMB 11.5

RMB4

Cost of stone balls and stone liner are contained in the product.
