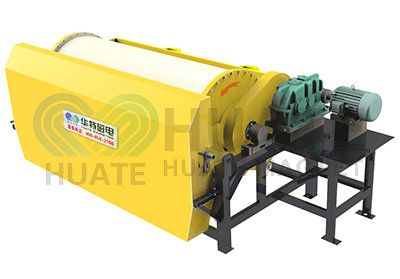

Series JCTN Raising Cocentrate grade and Decreasing Dregs Content Drum Permanent Magnetic Separator

Series JCTN Raising Cocentrate grade and Decreasing Dregs Content Drum Permanent Magnetic Separator

Type: Magnetic Separator
Patent number:
Service hotline:400-658-3198
send e-mail:    raul@chinahuate.com
  • Applicable Scope
It is used to upgradethe iron concentrate for the washing-plant or the beneficiation plant with3%-9% Fe% upgradation. Usage : Deslimingfor the overflow material after the first mill or concentrate before the secondmill and filter or desliming before the magnetite fed in to the fine screen andthe reverse flotation:final beneficiation for the magnetite.
  • Technical Features

1.Adopt the pipe-feeding device and over-flowsystem to feed the material evenly.

2.with 200~270° magnetic element and themulti-pole design to achieve the ideal

beneficiationindicator,the magnetic element structure can be designed accordingly.

3.magnetic blending system inside the tank.

4.downstream feeding ,counter-rotation drumand sufficiency multi-stage washing water.

5.Two stage discharging system with PUscraper.

6.Frequencycontrol driving system.

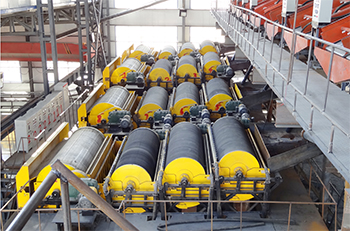

Classic case:
