Series RCDE Oil-Cooling Electromagnetic Separators
Type: Electromagnetic Iron Separation EquipmentService hotline:400-658-3198
send e-mail: raul@chinahuate.com
- Applicable Scope
- Technical Features
RCDE oil-cooling electromagnetic separator has the powerful magnetic force, dust proof, water proof, anticorrosion and duration by its international advanced oil-cooling transformer and complete closed structure. It is skillful of separating iron to protect the rollers and crushers. The width of adaptive belt varies from 400mm to 2200mm, we can design specifically at the request of customer.
Majortechnical parameters:

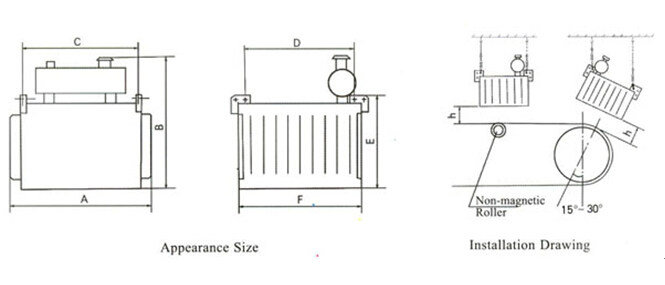

Model | Bet width | Suspension height | Magnetic field intensity | Belt speed | Material depth | Driving power | Weight | Appearance size mm | ||
A | B | F | ||||||||
RCDE-4 | 400 | 100 | 50 | 4.5 | 60 | 0.6 | 300 | 500 | 620 | 400 |
RCDE-5 | 500 | 150 | 60 | 100 | 1 | 500 | 670 | 760 | 500 | |
RCDE-6.5 | 650 | 200 | 70 | 150 | 2.0 | 750 | 795 | 855 | 650 | |
RCDE-8 | 800 | 250 | 70 | 200 | 3 | 1150 | 1050 | 980 | 835 | |
RCDE-10 | 1000 | 300 | 70 | 250 | 4.5 | 1400 | 1400 | 1160 | 1000 | |
RCDE-12 | 1200 | 350 | 70 | 300 | 6 | 2780 | 1460 | 1190 | 1290 | |
RCDE-14 | 1400 | 400 | 70 | 350 | 8.5 | 4200 | 1700 | 1280 | 1560 | |
RCDE-16 | 1600 | 450 | 70 | 400 | 12.5 | 5700 | 1950 | 1370 | 1850 | |
RCDE-18 | 1800 | 500 | 70 | 450 | 18 | 7300 | 2170 | 1490 | 2000 |
