Ball Mill&Vertical Classifier Production Line
Type: Powder Processing EquipmentService hotline:400-658-3198
send e-mail: raul@chinahuate.com
- Applicable Scope
- Technical Features

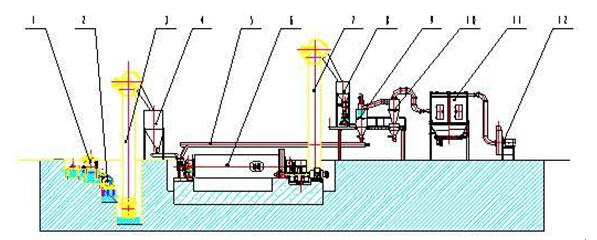

Processing chart
Ball Mill & Vertical ClassifierProduction Line
1、 jaw crusher 2、hammercrusher 3、Lifting machine 4、material store chamber 5、uniformparticle backing 6、ball mill 7、Bucket elevator 8、tank 9、classifier10、cyclone collector 11、dust catcher 12、induceddraft fan
Characteristics:
1、 Its system and configure are optimized by theory and practice todecrease power consumption furthest. The dust catchers in the production lineare designed superiorly which can avoid dust leak and accord with government’spolicy.
2、 It’s international standard production line. And we can design andproduce it according to customer’s detailed requirements. The whole productionline works steady and reliable.
3、 It can be operated easily. And it can be designed as PLCautomatically controlling, from grind to classifier to pack, the whole processis automatically controlled to reduce labor to save cost
4、 The vanes of classify impeller are made of macromolecule wearresistant material which solves the hard problem of abrasion of classifyimpeller.
5、 The whole production process was going on with advanced wearresistant defending. The inner layer of ball mill can be made of ceramic orquartz. And choose ceramic ball or quartz ball as grind medium. The whole classifysystem takes potsherd defending so that the whole production don’t touch metalto guarantee the product’s purity and prolong the equipments’ service time.
scope of arrangement:
1、 Soft material: calcite, marble, limestone, barite, gypsum, slagetc.
2、 Hard material: quartz, felspa, carborundum, corundum, fine cementetc.
Technical parameters:
Item | Model | ||||
HMF-50 | HMF-100 | HMF-200 | HMF-400 | HMF-600 | |
Ball mill model | Ф1200X4500 | Ф1500X5700 | Ф1830X7000 | Ф2200X7000 | Ф2400X7500 |
Classifier model | HF050 | HF100 | HF200 | HF400 | HF600 |
General power of the whole production line (Kw) | ≤75 | ≤145 | ≤225 | ≤345 | ≤550 |
Processing capacity (Kg/h) | 800-1000 | 1200-1800 | 3500-4000 | 5000-6000 | 7000-8000 |
Production capacity (Kg/h) | 480-600 | 720-1080 | 2100-2400 | 3000-3600 | 4200-4800 |
Particle size | 5~50 | 5~50 | 5~50 | 5~50 | 5~50 |
Classifying granularity | D97 | D97 | D97 | D97 | D97 |
Fliter area (m2) | ≥50 | ≥70 | ≥100 | ≥120 | ≥200 |
Thickness of dust | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 |
Operation | continuous |
Remark: 1. All of the parameters above is according to 325 mesh quartz
2. As different material from different places, the parameter is just for your reference.

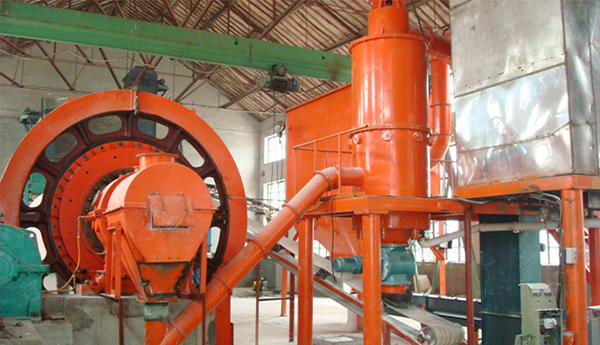

Classic case:
