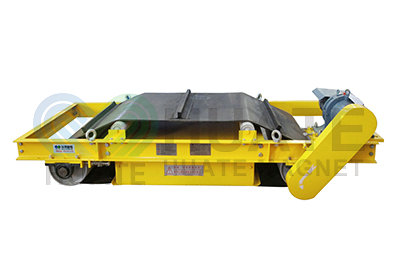

Series RCYD Self-Cleaning Permanent Magnetic Separators
Type: Permanent Magnetic Iron SeparatorService hotline:400-658-3198
send e-mail: raul@chinahuate.com
- Applicable Scope
It is used to eliminate the ferromagnetic material weighing from 0.1kg to 35kg ,for cement,thermal power plant, metallurgy ,mining,chemical ,paper making and coal industry .etc
- Technical Features
It is made up with permanent magnetic chip of robust performance, iron-discharging belt, reducer, frame and roller etc. and can match with all kinds of conveyors. It is used to eliminate the ferromagnetic material weighing from 0.1kg to 35kg .Inside we employ the computerized simulating run in the harsh environment for a long period.
Major Technical Parameters:
Model | Belt width | Suspension height | Magnetic field intensity | Driving power | Belt speed | Work hour | Weight | Appearance size mm | ||
A | B | C | ||||||||
RCYD(C)-5 | 500 | 150 | 60 | 1.5 | 4.5 | continuous | 750 | 1900 | 735 | 935 |
RCYD(C)-6.5 | 650 | 200 | 70 | 2.2 | 1200 | 2165 | 780 | 1080 | ||
RCYD(C)-8 | 800 | 250 | 70 | 2.2 | 1400 | 2350 | 796 | 1280 | ||
RCYD(C)-10 | 1000 | 300 | 70 | 3.0 | 2120 | 2660 | 920 | 1550 | ||
RCYD(C)-12 | 1200 | 350 | 70 | 4.0 | 3350 | 2860 | 1010 | 1720 | ||
RCYD(C)-14 | 1400 | 400 | 70 | 4.0 | 4450 | 3225 | 1050 | 1980 | ||
RCYD(C)-16 | 1600 | 450 | 70 | 5.5 | 6200 | 3350 | 1180 | 2160 | ||
